CNC LATHE MACHINE
Product Name:
CNC LATHE MACHINE
No. :
1
:
:

Product Description:


CNC LATHE MACHINE



Basic Specification

Process end plate external diameter, normal configuration:300, 400,  500, 600mm

Change chuck: 300 ~ 800mm

Principal axis speed 118r/min/ inverter to realize stepless speed change

Blade adapter on Z direction maximum movement, bilateral symmetry: 350mm

Non bilateral symmetry: 500mm.

Blade adapter on X direction maximum movement: 200 mm.

Primary motor model Y180M-4

Power 15KW

Supply voltage triphase 380V 50HZ

Stepper motor Z direction: type 110BYG3504

Step angle 0.6 degrees /1.2 degrees

Torque 20N.m

Supply voltage triphase 80-350V 4.8A

X direction: model 110BYG3503

Step angle 0.6 degrees /1.2 degrees

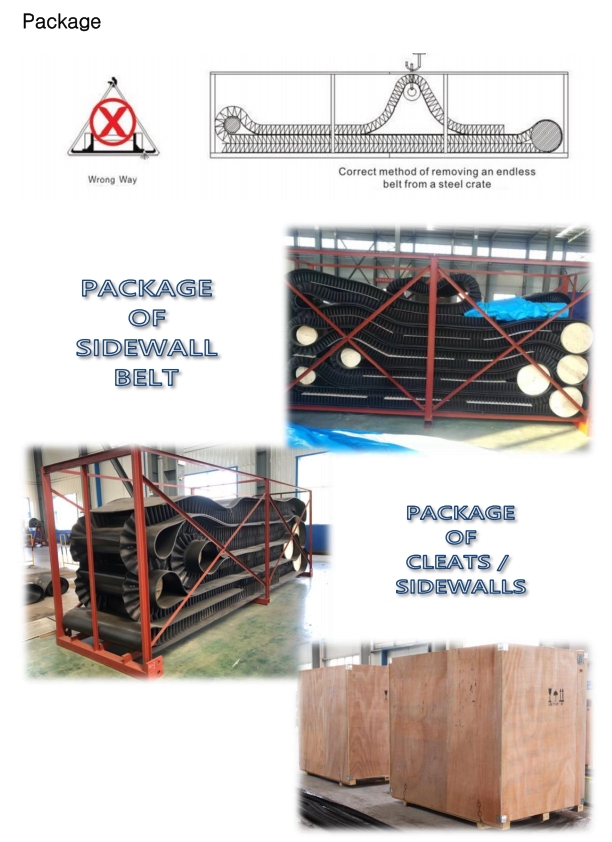

Packaging Way

Standard export packaging with Metal Frame and Wooden Carton
